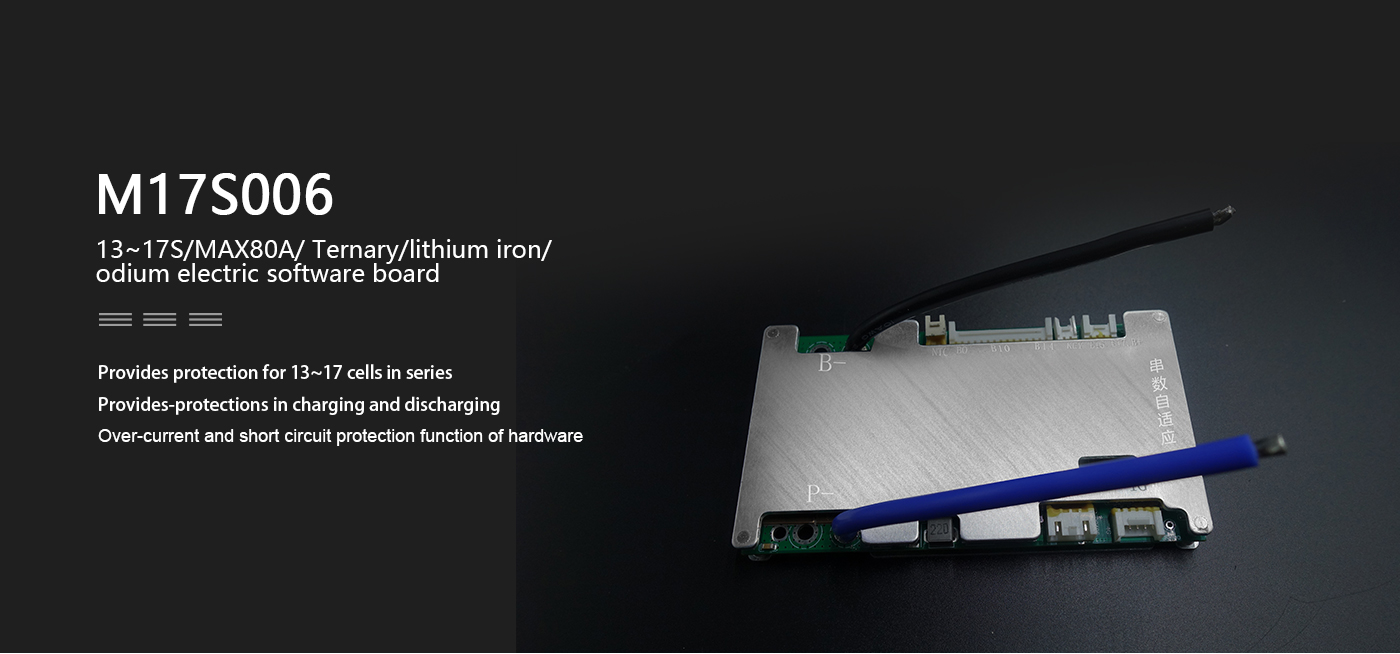

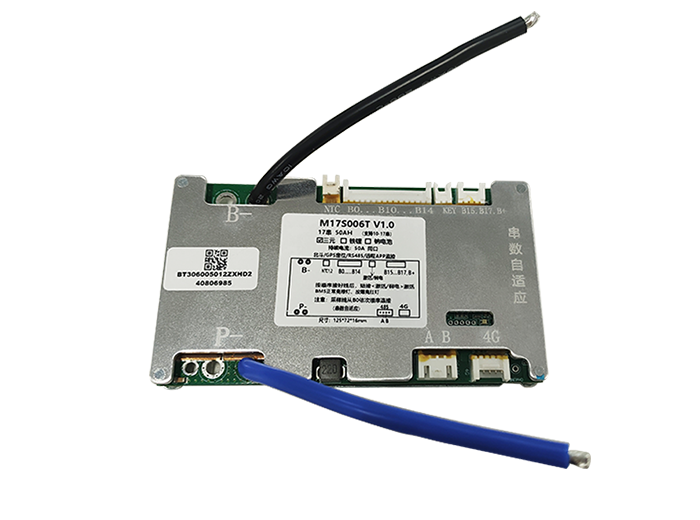

Hippo M17S006 lithium battery protection board 17 series 80A power protection board

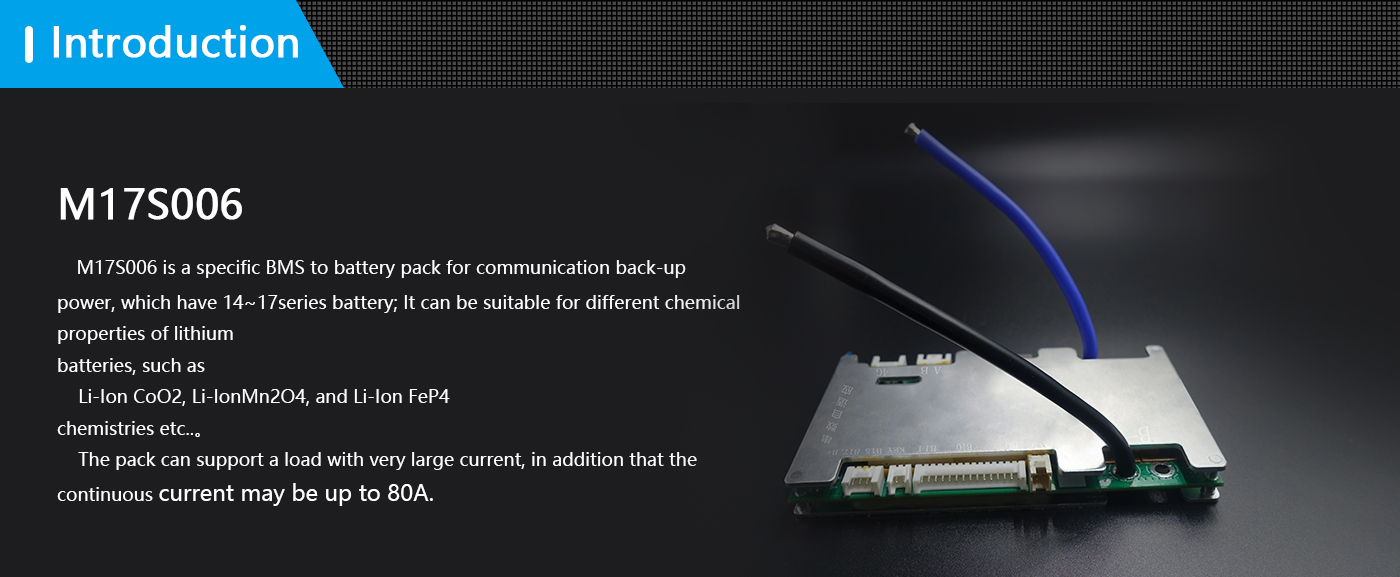

BP-M17S006 is a protection board solution designed by our company for 13~17 battery packs of power batteries; it can be used for lithium batteries of different chemical properties, such as lithium ion, lithium polymer, lithium iron phosphate, etc. This protection board has a strong load capacity and the maximum continuous current can reach 80A.

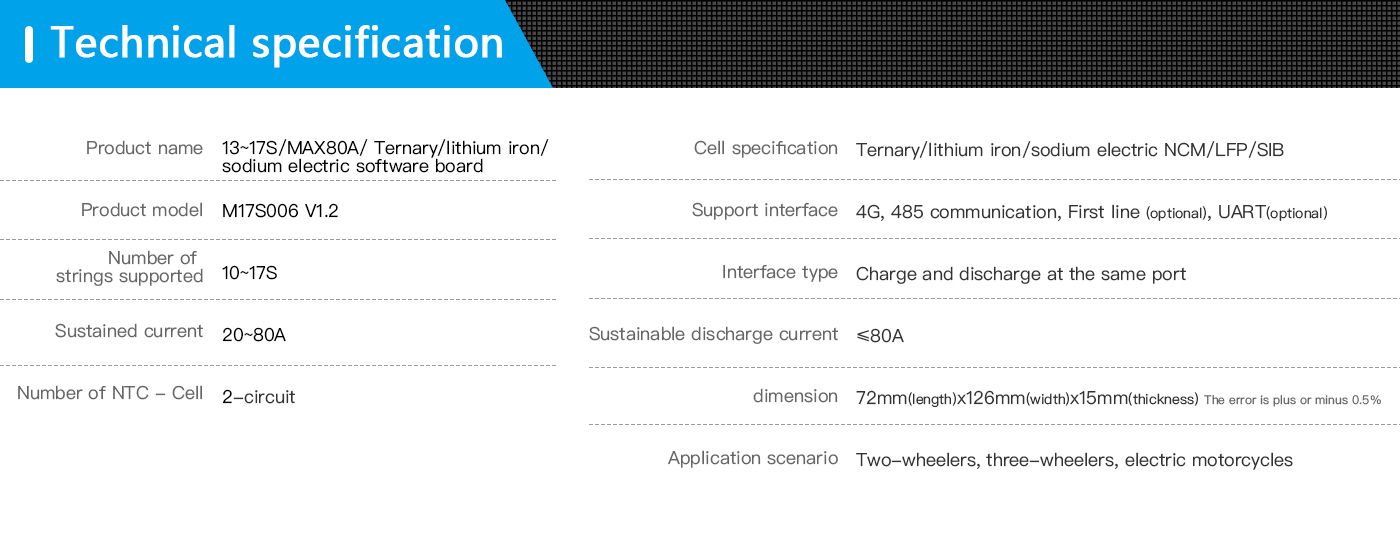

• Brand: Hippo
• Product name: protection board
• Product model: M17S006
• Number of strings supported: 10~17
• Continuous current: 20~80A
• NTC quantity-battery: 2PCS
• 4G module interface: standard
• Battery specification: ternary/iron lithium
• Interface type: same port for charging and discharging
• Sustainable discharge current: ≤80A
• Sustainable charging current: ≤80A
